제품 상세정보
원래 장소: 바오지, 중국
브랜드 이름: LIHUA
인증: ISO9001, TUV etc.
모델 번호: LH-TH
지불과 운송 용어
최소 주문 수량: 1개
가격: US dollar $15/kg--US dollar $35/kg
포장 세부 사항: 수출을 위한 합판 박스
배달 시간: 5-25 작업 일수
지불 조건: L/C, T/T, 웨스턴 유니온
공급 능력: 달 당 5000 크그스
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |
Product name: |
titanium forged ring |
Material: |
Gr5 |
Application: |
Chemical industry |
Outer diameter: |
200-1300mm |
Inner diameter: |
100-900mm |
Height: |
35-250mm |
Thickness: |
40-400mm |
Quality control: |
Ultrasonic Testing |

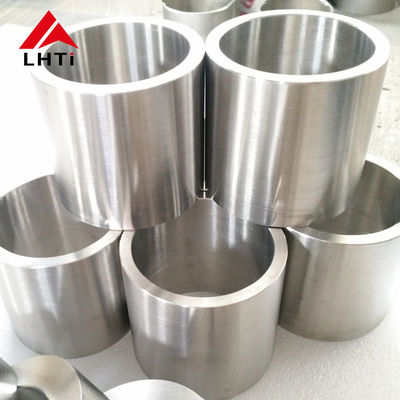

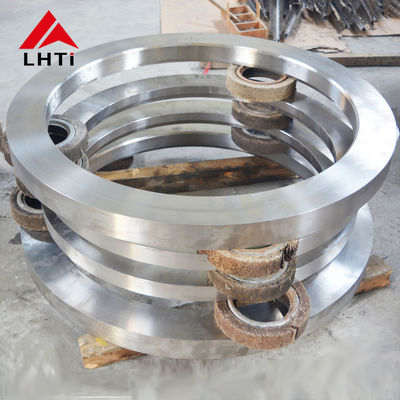

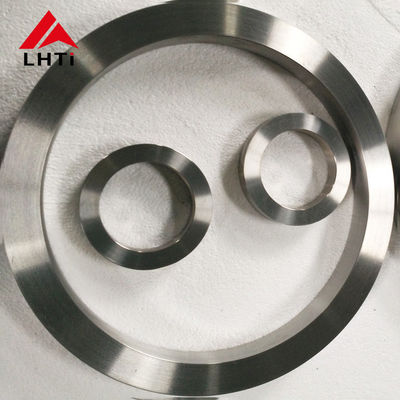

GR5 Forging Titanium Alloy Ring ASTM B381
Astm B381 Titanium Forgings Parts & Components:
In recent years, there has been a significant rise in the demand for titanium and titanium alloys, primarily used in aircraft and aerospace applications. The price of commercially pure titanium (CP) has risen sharply since 2003 to 2014, from $15.00 per lb to $30.00 per lb. It is an extremely light weight and high strength material. Certain alloys like 6AL-4v, 8Mn, 8Al-1MO-1V, 5Al-2.5Sn,and 6Al-2Sn-4Zr-2Mo, are also used in Aircraft engine applications due the ability of these alloys to with stand high temperature environments.
Titanium forgings that are used with Commercially Pure Alloys (Grade 1 ,Grade 2, Grade 3, Grade 4) are primarily used in Aircraft Frame applications.
| Chemical requirements | |||||||||||
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
