제품 상세정보
원래 장소: 중국
브랜드 이름: LHTi
인증: ISO9001:2015; TUV; SGS; BV
모델 번호: 티타늄 링
지불과 운송 용어
최소 주문 수량: 5 PC
가격: USD12.00-35.00 per kg
포장 세부 사항: 어떠한 운송 유발된 트라우마에 대한 추가적 보호를 위한 연질 포움과 합판 박스
배달 시간: 12-25 작업 일수
지불 조건: 전신환, 머니그램, L/C (신용장), 웨스턴 유니온, 페이팔
공급 능력: 달 당 200000 킬로그램
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical engineering & Petrochemical technology |
Characteristic 1: |
Excellent corrosion resistance |
Surface: |
Bright polished |
Standard: |
ASTM B381 |
Production Process: |
Hot Rolled/Annealed |
Wall Thickness: |
0.5mm-25mm |
Application: |
Chemical engineering & Petrochemical technology |
Characteristic 1: |
Excellent corrosion resistance |
Surface: |
Bright polished |

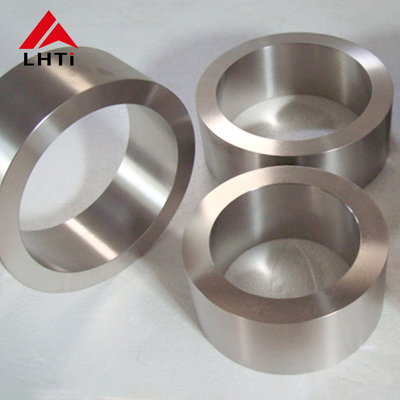

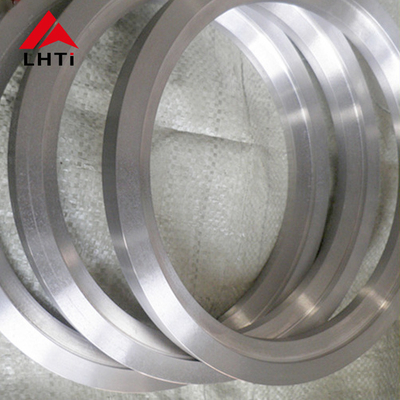

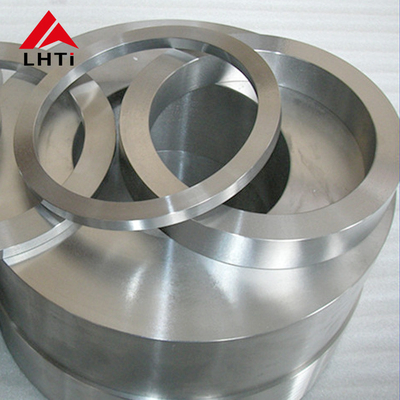

ASTM B381 Titanium Forged Rings
A astm b381 Titanium Forged rings was made in three steps. The process flows grains to the tangential and radial directions and provides mechanical properties such as strength, ductility, and impact and fatigue resistance to the workpiece.
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
